Warehouse and Manufacturing Ergonomics: Layout Changes That Prevent Real Injuries

Most ergonomic injury prevention in warehouses isn't equipment or training — it's layout. Where the fast-movers sit, how high the work happens, and the handful of changes with the best payback.

4 min read

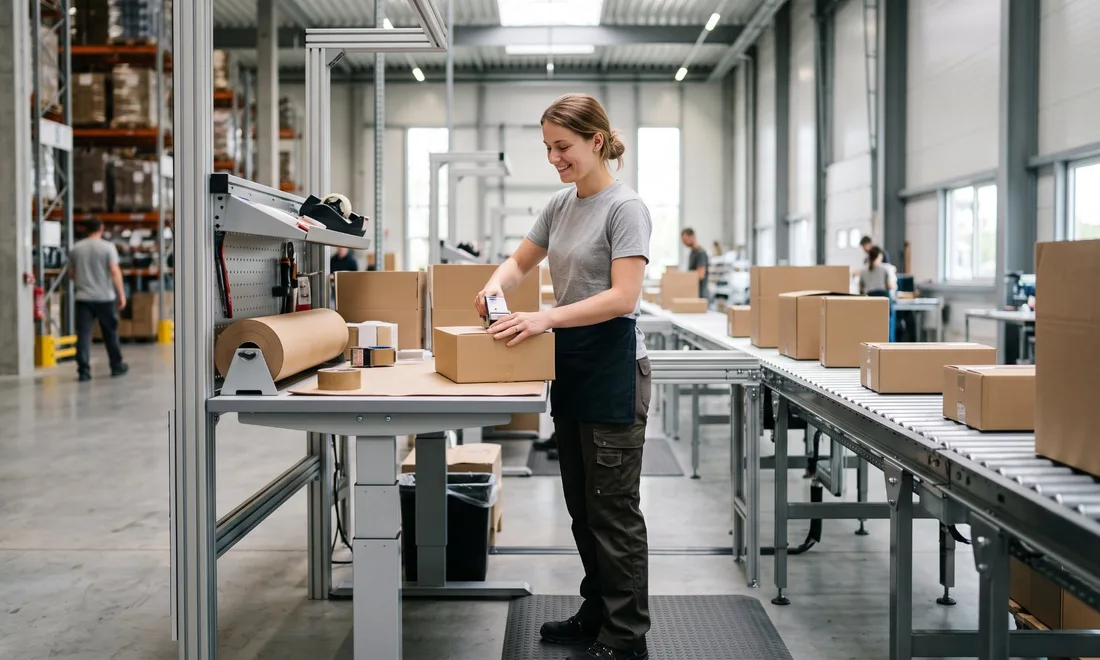

Warehouse worker at an ergonomic adjustable-height packing station

Key takeaway: The highest-payback ergonomics in warehouses and plants isn’t posters or stretching — it’s geometry. Keep the most-handled items between knee and shoulder height, bring loads close before they’re lifted, convert carries to pushes, and raise or lower the work instead of the worker. Most of it is slotting and layout decisions you can change without buying anything.

This guide is for warehouse managers, plant supervisors, and safety leads — a practical companion to our broader [LINK: back injury prevention guide].

The Golden Zone Rule

The strike zone for human handling runs roughly from knee to shoulder height, close to the body. Every frequent lift that starts below the knees, ends above the shoulders, or begins at arm’s reach multiplies load on the spine and shoulders. The single most effective ergonomics project in most facilities is re-slotting: put the A-movers — the items touched dozens of times a shift — in the golden zone, and exile the slow-movers to the top and bottom. Your pick data already knows which is which.

The Big Five Layout Fixes

1. Re-slot by velocity (above) — usually free, usually the biggest win.

2. Raise or lower the work, not the worker. Lift tables, pallet positioners, and scissor carts keep the working surface at hand height as the load builds or shrinks. Stooping to the bottom of a pallet five hundred times a shift is a claim on layaway.

3. Convert carries to pushes. Carts and conveyors beat carrying; pushing beats pulling (better spinal posture, better visibility). Audit anywhere a person walks while holding weight and ask why the load isn’t rolling.

4. Close the reach gap. Loads handled at arm’s length can multiply effective spinal load several times over versus loads held close. Deep shelving, wide pallets against walls, and cluttered staging force long reaches — turn pallets, pull stock forward, keep staging shallow.

5. Set team-lift and mechanical-assist thresholds — and post them. A stated weight above which it’s two people or a machine, with the equipment actually nearby. A hoist three aisles away is a policy, not a control.

The Supporting Cast (Worth Doing, Smaller Effect)

  • Job rotation across muscle groups and motion patterns — schedule it; it won’t happen organically
  • Anti-fatigue matting and footwear programs for sustained standing positions — modest evidence, low cost, workers feel the difference [CLINICIAN VERIFY framing]
  • Workstation height adjustability where multiple people share a bench
  • Micro-breaks in high-repetition tasks — brief and frequent beats rare and long

What Doesn’t Carry the Weight Alone

Annual lifting-technique training and stretching programs are fine as supplements and weak as strategies — covered honestly in our [LINK: back injury prevention guide]. If the layout demands bad lifts, training asks people to out-discipline their environment for two thousand repetitions a week. The environment wins.

How to Run a One-Day Ergonomics Audit

  1. Pull your injury and near-miss log; mark locations on a floor map — clusters point at tasks
  2. Pull pick/velocity data; flag A-movers stored outside the golden zone
  3. Walk the floor watching for: stooped lifts, overhead lifts, long carries, long reaches, twisting under load
  4. Rank fixes by frequency × severity × cost — re-slotting and staging changes usually top the list
  5. Fix the top three; re-check the log in 90 days

Early symptom reporting is the audit’s ongoing data feed: workers’ aches map your problem tasks before the claims do. ICA can support with same-day strain evaluation and on-the-floor task assessment. [CONFIRM ICA offers worksite ergonomic assessment before publish]

Where ICA Fits In

When prevention misses one, ICA provides same-day [LINK: work injury evaluation] with work-status reports your scheduling can use — and helps employers build [LINK: injury prevention programs] aimed at the tasks actually driving their claims.

FAQ

What’s the cheapest change with the biggest effect? Re-slotting by velocity. It costs labor hours, not capital, and it relocates thousands of weekly lifts into the golden zone.

Are back belts part of an ergonomics program? Not as injury prevention — NIOSH’s review found no demonstrated protective effect. Spend the budget on layout and mechanical assists. [CLINICIAN VERIFY]

How do we measure success? Strain/sprain frequency and severity by area, plus leading indicators: near-miss reports, early symptom reports, and observed high-risk lifts per audit walk.


General information, not medical advice.

[Medically reviewed by — REQUIRED] · Last reviewed: [DATE]
